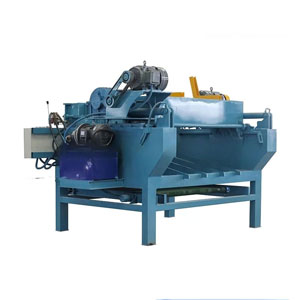

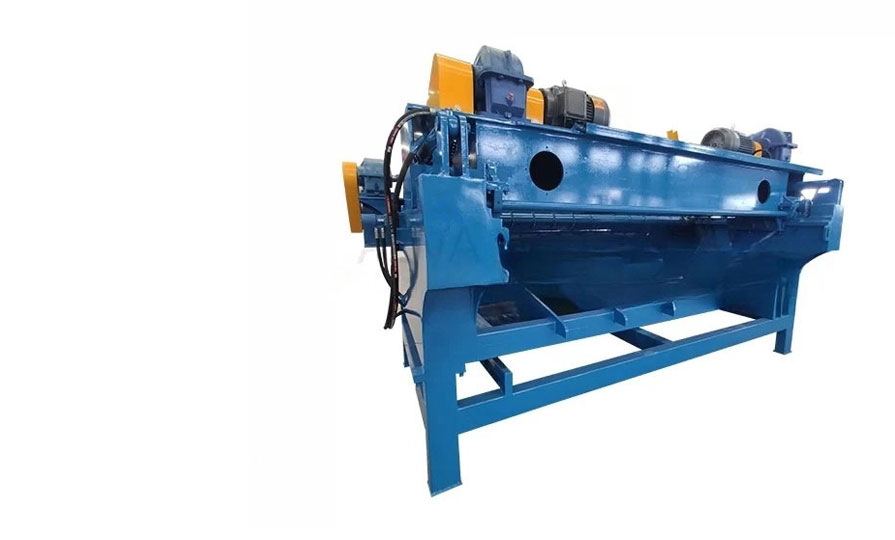

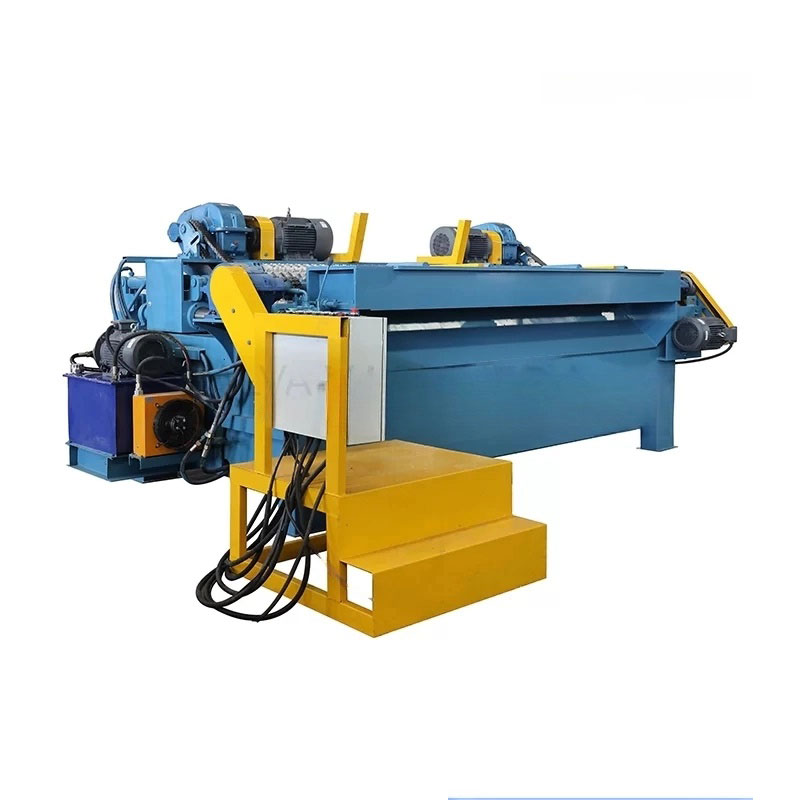

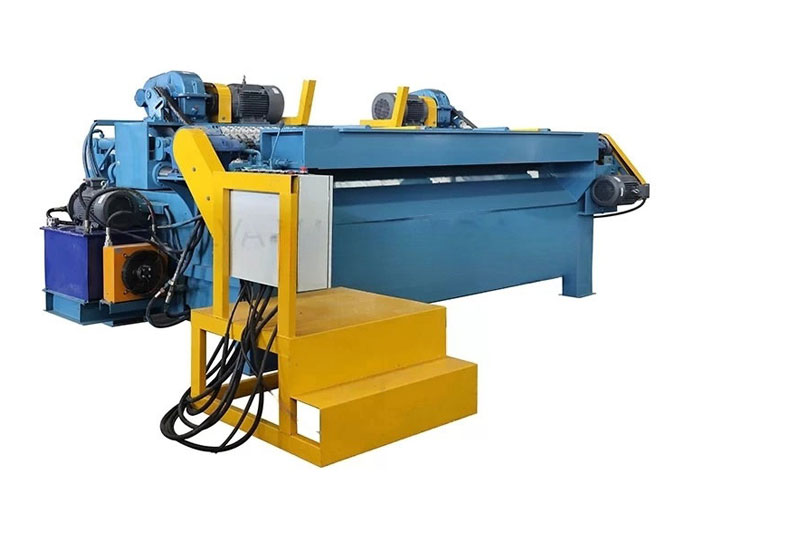

Machinery used to peel logs. It is also called wood debarker or wood debarker, mainly because its purpose is to debark wood, and its debarking rate can reach more than 95%.
This machine adopts rotary cutting principle of non-chuck rotary lathe, hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work. One debarker machine can supply with two rotary lathe, save about five or six people.
| Model | DB-WD8FT |
|---|---|
| Working log diameter | Φ130~550mm |
| Rotary knife specification | 2600 * 180 *16 mm |
| Diameter of rollers | 200mm |
| Linear speed | 50m/min |
| Reference output | 120 m³/ day |
| Hydraulic system power | 7.5kw |
| Power of single roller | 7.5kw*2 |
| Single roller reducer | R350 |
| Power of double roller | 7.5kw*2 |
| Double roller reducer | R350 |
| Total power | 37.5kw |
| Product dimension | 5600 * 2200 * 1500 mm |
| Weight | 8000kgs |
Explore our Produts
Hydraulic Knife Holder saving manpower, simple operation and automation.
>
Taiwan Hiwin linear guide railo ensure the vener more smooth and uniform.
Double roller frive ensure good stability and high uniformity peeler.
Why Choose Us
FAQ
Ans.: Yes, we can customize and produce woodworking machinery according to customers’ requirements or drawings.
Ans.: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample.
Ans.: We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
Ans.: The price depends on the latest prices of the raw materials.
Ans.: If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we’ll produce the machines as soon as possible.
Ans.: When the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.
