Steam Boiler

Coal-fired (biomass) steam, hot water boile

Main Features

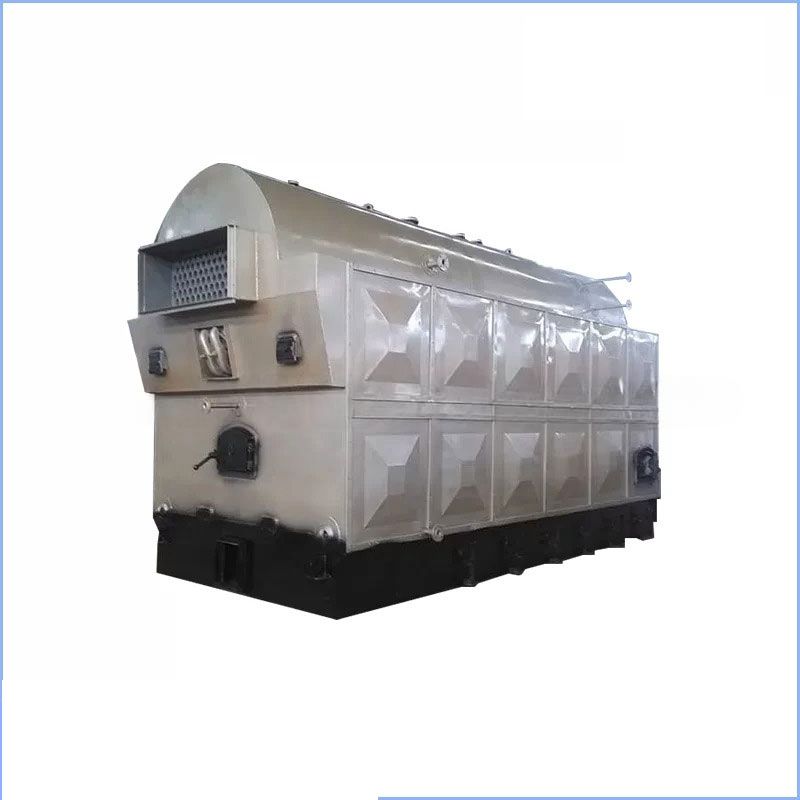

The DZL series quick-installation boiler is a horizontal three-pass water pipe chain grate boiler.

Medium quality bituminous coal and anthracite coal. The boiler body is a single drum arranged longitudinally, and a screw is arranged inside the drum.

The patterned smoke tube forms the convection heating surface, and the drum and water-cooling walls on both sides form the furnace radiation heating surface.

Hot noodles. The combustion equipment adopts light chain grate; the whole unit is shipped from the factory in quick assembly form. Electrical control.

The system realizes stepless speed regulation of the grate, extreme parameter alarm and interlocking protection.

Expected Delivery in 4-10 Days

Get a Quote

Product brief introduction
Product parameter list

The DZL series quick-installation boiler is a horizontal three-pass water pipe chain grate boiler.
Medium quality bituminous coal and anthracite coal. The boiler body is a single drum arranged longitudinally, and a screw is arranged inside the drum.
The patterned smoke tube forms the convection heating surface, and the drum and water-cooling walls on both sides form the furnace radiation heating surface.
Hot noodles. The combustion equipment adopts light chain grate; the whole unit is shipped from the factory in quick assembly form. Electrical control
The system realizes stepless speed regulation of the grate, extreme parameter alarm and interlocking protection.

DZL type single drum longitudinal coal-fired (biomass) steam boiler technical parameters
project	Boiler model
project	DZL0.5-0.7	DZL1-0.8	DZL1-1.0	DZL2-1.25	ZDL4-1.25
Rated evaporation capacity (t/h)	0.5	1	1	2	4
Rated working pressure (Mpa)	0.7	0.8	1	1.25	1.25
Rated steam temperature (℃)	171	175	184	194	194
Feed water temperature (℃)	20	20	20	20	20
Heating area (m²)	22.5	32.4	42	80	104
Economizer(m²)	8.25	12.51	15	20	32.4
Effective area of grate (m²)	1.45	2.05	1.8	3	5865
Applicable fuel	Class II and III bituminous coal and biomass
Applicable amount of boiler fuel (kg/h)	88	170	146	289	546
Boiler thermal efficiency (%)	74	76.8	80	86	88
DZL type single drum longitudinal coal-fired (biomass) hot water boiler technical parameters
project	Boiler model
	DZL0.7-0.7/	DZL1.4-0.7/	DZL2.8-0.7/	DZL4.2-0.71	DZL7-0.71
	95/70-A Ⅱ	95/70-A Ⅱ	95/70-A Ⅱ	95/70-AⅡ	95/70-A Ⅱ
Rated thermal power (MW)	0.7	1.4	2.8	4.2	7
Rated working pressure (Mpa)	0.7	0.7	0.7	0.7	0.7
Outlet water temperature (℃)	95	95	95	95	95
Return water temperature (℃)	70	70	70	70	70
Heating area (m²)	32.4	59	114.6	242	400
Effective area of grate (m²)	2.05	3.17	4.04	8	15
Applicable fuel	Class II and III bituminous coal and biomass
Applicable amount of boiler fuel (kg/h)	170	335	665	900	1500
Boiler thermal efficiency (%)	76.8	77.7	78.9	88	86
