All of our plywod machines can be customized according to your production requirement.
Plywood hot press machine

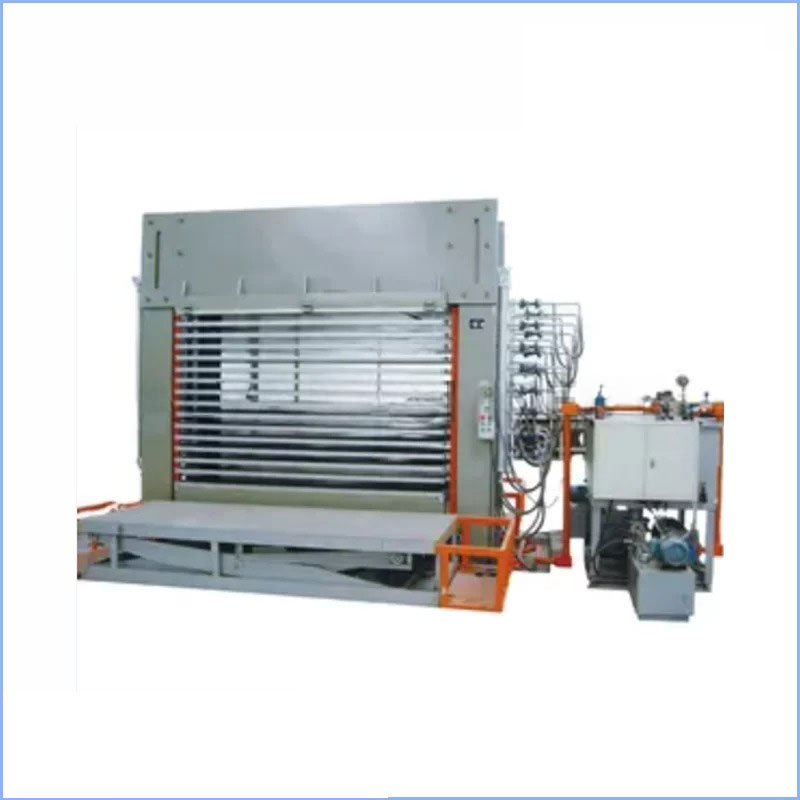

500T 15 Layers Plywood Hot Press Machine
Expected Delivery in 4-10 Days
Main Characteristics:
- Detachable Frame, convenient transportation and installation.
- Famous brand spare parts.
| Configure | ||
| NAME | UNIT | PARAMETER |
| Nominal Pressure | T | 500 |
| Board Feeding Direction | Transverse | |
| Nmberof Opening | Layer | 15 |
| Opening Distance | MM | 70 |
| Number of Hot Plate | PC | 16 |
| Size of Hot Platen | MM | 1370*2700*42 |
| Numbers of Cylinder | PC | 2 |
| Diameter of Cylinder | MM | 360 |
| Working Stroke of Cylinder | MM | 1050 |
| Allowed Pressure | MPa | ≤25 |
| Flow of Low Pressure Pump | L/MIN | 250*2 |
| Power of Motor | KW | 11KW*2 |
| Flow of High Pressure Pump | L/MIN | 25 |
| Allowed Pressure | Mpa | 25 |
| Power of Motor | KW | 7.5KW*1 |
| Overall Dimensions | MM | 3700x1370x4300 |
| Control Method | Automatic hydraulic stations | |
| Thickness of Upper And Lower Crossbeams | MM | 900 |
| Main Steel Plate Thickness | MM | 35 |
Why Choose Us
- lasering your logo on products and designing logo is free.
- Inspect the machine before leaving the factory
- Overseas install and debug the equipment
- Train the first-line operator
- 24 hours online service
- Provide the VIDEO with install and debug the equipment
- Provide technical exchanging
- No else charge
- MOQ≥1
- Support: Wechat /Email/ whatsapp/
- Provide Packaging customization service
- We specialize in this field for 25 years
- Excellent after-sale system
- Supporting visits to factory
FAQ
- Q1: Can you customize products for clients?
- Q2: What about your products quality?
- Q3:How can we trust your factory?
- Q4:Why does the price often change?
- Q5:What about the contract signing?
- Q6:How about delivery?
Ans.: Yes, we can customize and produce woodworking machinery according to customers’ requirements or drawings.
Ans.: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample.
Ans.: We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
Ans.: The price depends on the latest prices of the raw materials.
Ans.: If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we’ll produce the machines as soon as possible.
Ans.: When the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.
