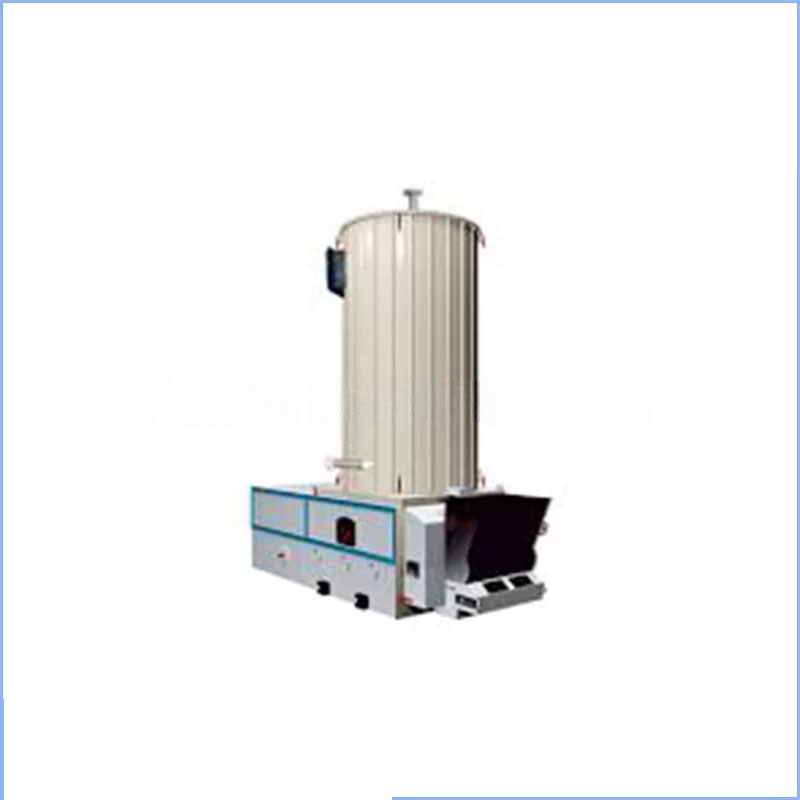

Oil and Gas Fired Thermal Organic Heater
Expected Delivery in 4-10 Days
- Large diameter combustion chamber, best coil design, three return flue gas, good safety and high efficiency.
- With overall structure for the lid, the multi-stage labyrinth seal, the sealing process and special material, completely deadening flue gas leakage.
- Precision oil temperature control, medium temperature, pressure, and temperature settings of multiple controls over smoke protection which are ensure the safe and reliable operation.
- Heating surface is reasonably arranged, large area, good heat transfer, and high efficiency, stable and adequate output.
| MODEL | YY(Q)W- 240Y(Q) |
YY(Q)W- 350Y(Q) |
YY(Q)W- 500Y(Q) |
YY(Q)W- 700Y(Q) |
YY(Q)W-1000Y(Q) | YY(Q)W-1200Y(Q) | YY(Q)W- 1400Y(Q) |
||
| Rated Thermal Power | KW | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 | |
| Design Pressure | MPa | 1.1 | |||||||
| Medium Outlet Temperature | ℃ | ≤350 | |||||||
| Heating Area | CBM | 14.5 | 21.3 | 24 | 40 | 50 | 64.6 | 78.5 | |
| Suitable Fuel Kind | Heavy Oil/Light Oil/Natural Gas/lpg/City Gas | ||||||||
| Fuel Consumption | Light Oil | KG/H | 25 | 37 | 52 | 69 | 100 | 120 | 140 |
| Natural Gas | Nm³/H | 30 | 44 | 63 | 83 | 120 | 145 | 170 | |
| Gas Pressure | Natural Gas | MBAR | 30-100 | 50-150 | |||||
| Equipment Power | Burn Light Oil | KW | 8 | 10 | 10 | 18 | 26 | 26 | 26 |
| Burn Gas | KW | 8 | 10 | 10 | 18 | 25 | 26 | 26 | |
| Furnace Oil Content Boiler Water Capacity |
m³ | 0.15 | 0.25 | 0.3 | 0.5 | 0.8 | 0.85 | 1.1 | |
| Boil Dimension | MM | 1930* 1230*1868 |
2100* 1390*2055 |
2200* 1390*2055 |
3240* 1470*2260 |
3300* 1670*2486 |
3830* 1770*2587 |
4185* 1900*2786 |
|
| Max. Tranport Weight | TON | 2 | 2.58 | 3 | 3.7 | 5 | 5.8 | 6.7 | |
| Oil Inlet | DN | 65 | 80 | 100 | 125 | ||||
| Oil Outlet | DN | 65 | 80 | 100 | 125 | ||||
| Expension Tank | CBM | 1.5 | 2 | 2.5 | |||||
| Storage | CBM | 2.5 | 4 | 5 | |||||
| Chimney | MM | 280 | 350 | ||||||
