1) The veneer stacking machine is a great combination for the peeling machine. It greatly helps to improve the efficiency.
2) Driven by servo motor and precision screw feed.
3) Vacuum adsorption mode is more powerful to adsorb different thickness veneers no matter high thickness or low thickness.
4) The low quality veneer like big holes or not full piece will be sorted out automatically.
Veneer Stacker
Main Features

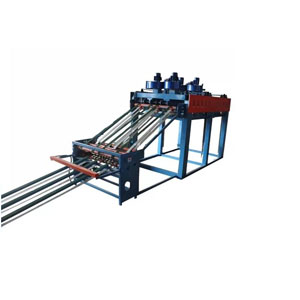

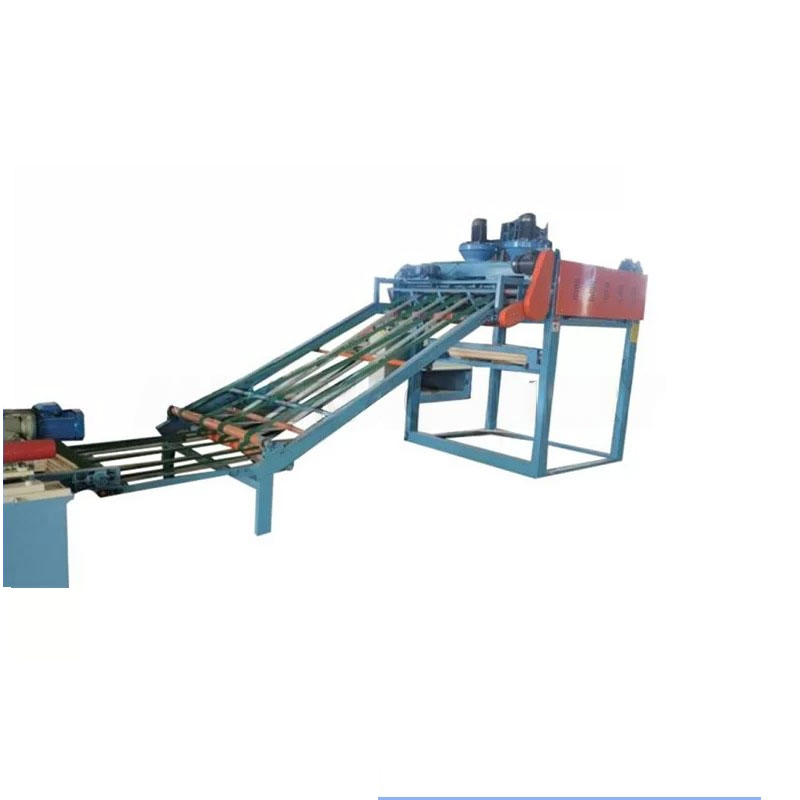

4 Feet Automatic Veneer Stacker (Automatic sorting of levels)
Main Features
Expected Delivery in 4-10 Days

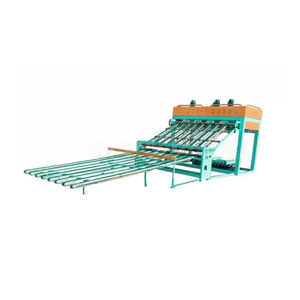

4/6/8 feet auto veneer vaccum palletizer automatic veneer stacker connects with log peeling machine, its function for automatically sorting wood veneer after peeling log, so it can save two labor cost and improve work efficiency.
High speed veneer stacker, can greatly reduce labor costs and improve production efficiency, we have a number of models for you to choose, such as, roller type, pressure plate type, and the most advanced adsorption type. The main size of the stakcer is 4ft and 8ft. And we can do other size as customer requirement as well.
The stacker is with high intelligent system which is controlled by PLC. It is able to match the speed of the peeling machine automatically with the support of several sensors fixed in different place to check on the veneer always. The unqualified products can be sorted out automatically according to the needs.It has functions like Automatic counting and alarming, automatic transferring.
- 1. We always produce machinie according to our clients own conditions, make sure offer the most suitable machine to them.
- 2) This machine will sort and stack the good quality face wood veneer.
- 3) This machine can separate the waste and good quality wood veneer automatically.
- 4) Adapt to different veneer and plywood manufacture
| Model | DB-VSM-4FT-01/02 |
|---|---|
| use | Palletizing |
| Receiving speed | 40-80m/min |
| Receiver Width | 1300mm |
| Board length | 2600mm |
| Received plate thickness | 0.5-3mm |
| Board height | 1200mm |
| Sorting level | Palletizing A/B |
| total power | 20~30KW |
| Way of working | Pneumatic shot |
| Dimensions | 8000*2100*2600mm |
| weight | 2000/4000KG |
| Packaging | |
| Size | (L)8000*(W)2100*(H)2700 |
| Machine weight | 1500 KG |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
