Veneer Stacker

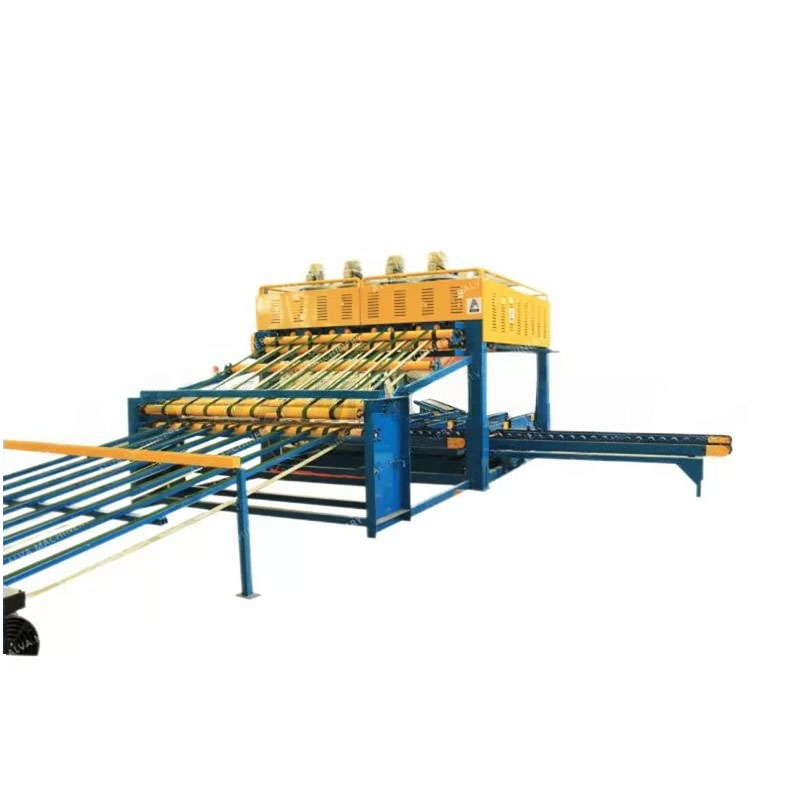

8 Feet Automatic Veneer Stacker (Automatic sorting of levels)

Main Features

1.It’s function is to pile up the cut veneer automaticlly, commonly installed after veneer peeling machine to save labour cost and improving working efficiency.Can be customized according to customer requirements.
2.High quality, the machine has been tested and upgraded several time, production sill mature and quality guaranteed
3.With First and Second Grade Veneer Grading and Sorting System.

Expected Delivery in 4-10 Days
  • Product brief introduction
  • Services
  • Product parameter list

4/6/8 feet auto veneer vaccum palletizer automatic veneer stacker connects with log peeling machine, its function for automatically sorting wood veneer after peeling log, so it can save two labor cost and improve work efficiency.


High speed veneer stacker, can greatly reduce labor costs and improve production efficiency, we have a number of models for you to choose, such as, roller type, pressure plate type, and the most advanced adsorption type. The main size of the stakcer is 4ft and 8ft. And we can do other size as customer requirement as well.


The stacker is with high intelligent system which is controlled by PLC. It is able to match the speed of the peeling machine automatically with the support of several sensors fixed in different place to check on the veneer always. The unqualified products can be sorted out automatically according to the needs.It has functions like Automatic counting and alarming, automatic transferring.




Pre-sale services:

We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.

Service during the sales:

Send technicians to the customer’s factory to install and debug the machine on site, train operators for free and you can also come to our factory to learn for free.

After-sale services:

We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.





Model DB-VSM-VSM-8FT01 DB-VSM-VSM-8FT02
Receiving speed 40—80m/min 40—80m/min
Receiver Width 1300mm 1300mm
Board length 2600mm 2600mm
Received plate thickness 0.5-3mm 0.5-3mm
Board height 1200mm 1200mm
Sorting level Level 1, Level 2/ 1 Stack Level 1, Level 2/ 2 Stack
total power 28.4kw 55KW
Way of working Pneumatic clapping Pneumatic clapping
Dimensions 10000*3600*3000mm 12000*3600*3000mm
weight 3500KG 4500KG
