Plywood hot press machine

Plywood Hot Press Machine Veneer Laminating Machine for Plywood

This Machine is one of the most important machines in plywood production. It determinds the production efficiencty and the quality of final products.

Producing kinds of plywood, like furniture plywood, construction plywood, marine plywood, hydraulic hot press machine is the necessary and important machine.

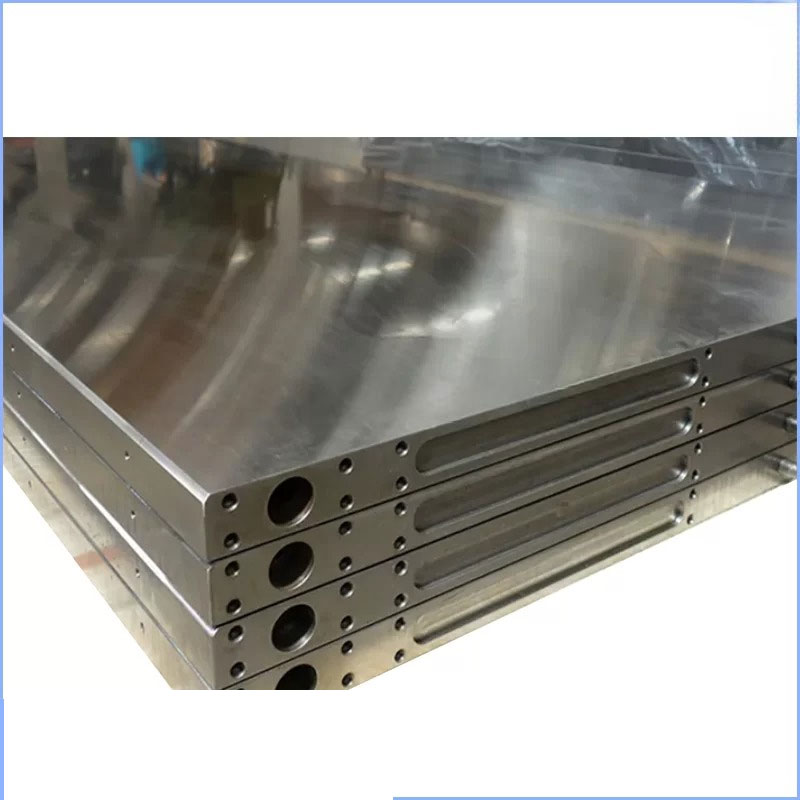

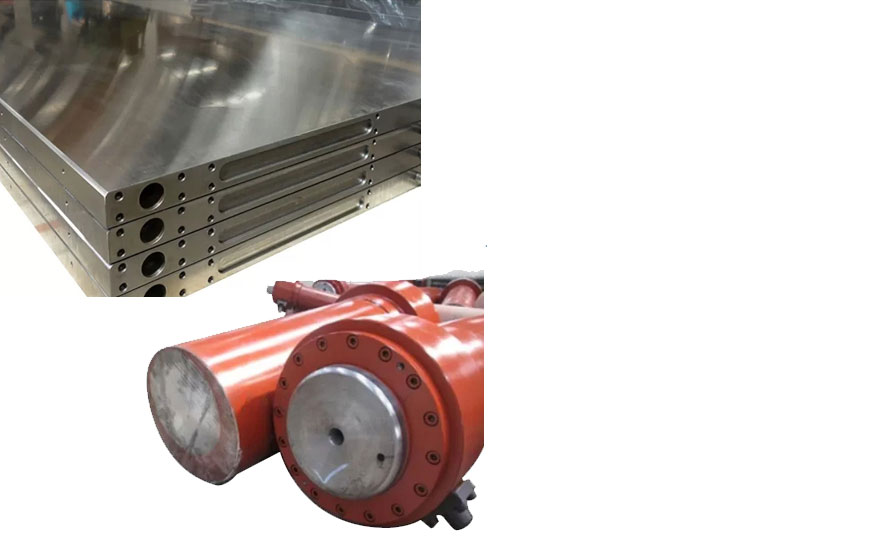

Hot Press’s structure not complex, mainly consist of: the machine frame, hot plates, hydraulic station, cylinder.

It can be different pressure and layers according to the real conditions, like 500t, 600t, 800t, 1000t, 1200t. 8layers, 10layers, 12layers, 15layers, 20layers, 25layers.



Expected Delivery in 4-10 Days
  • Product brief introduction
  • Product parameter list

Main Characteristics:

  1. The main frame is formed by high-quality international steel plate at one time. The well-designed frame and structure have good rigidity and ensure high pressure.
  2. Micro-control system high-quality hydraulic unit, hot platen closes quickly, high efficiency.
  3. Simple and reliable operation of automatic electrical equipment, automatic temperature and time control to ensure product quality.
  4. Save energy consumption and reduce production costs.





Configure
NAME UNIT PARAMETER
Pressure T 500
Main frame steel plate thickness MM 30/20/16
Hot platen size MM 2760*1400*42
Number of Hot Plate PC 16
Upper beam MM 900
Cylinder MM 360mm*2pcs
Middle beam MM 400
Bottom beam MM 900
Power KW 29.5
Preset pressure Mpa 25
Number of Opening Layer 15
Opening Distance MM 70
Control System Microcomputer hand-in-one
Heating medium Thermal oil. steam
Pattern Bg
Awesome Image

Why Choose Us

  • lasering your logo on products and designing logo is free.
  • Inspect the machine before leaving the factory
  • Overseas install and debug the equipment
  • Train the first-line operator
  • 24 hours online service
  • Provide the VIDEO with install and debug the equipment
  • Provide technical exchanging
  • No else charge
  • MOQ≥1
  • Support: Wechat /Email/ whatsapp/
  • Provide Packaging customization service
  • We specialize in this field for 25 years
  • Excellent after-sale system
  • Supporting visits to factory
Pattern Bg

FAQ

  • Q1: Can you customize products for clients?
  • Ans.: Yes, we can customize and produce woodworking machinery according to customers’ requirements or drawings.

  • Q2: What about your products quality?
  • Ans.: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample.

  • Q3:How can we trust your factory?
  • Ans.: We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

  • Q4:Why does the price often change?
  • Ans.: The price depends on the latest prices of the raw materials.

  • Q5:What about the contract signing?
  • Ans.: If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we’ll produce the machines as soon as possible.

  • Q6:How about delivery?
  • Ans.: When the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.
