Rotary peeling machine is one of the main equipment for the production of plywood. The appearance of the rotary peeling machine not only improves the quality and precision of the production veneer, but also greatly improves the production efficiency and the degree of automation of the whole machine.
Spindle Peeling Machine

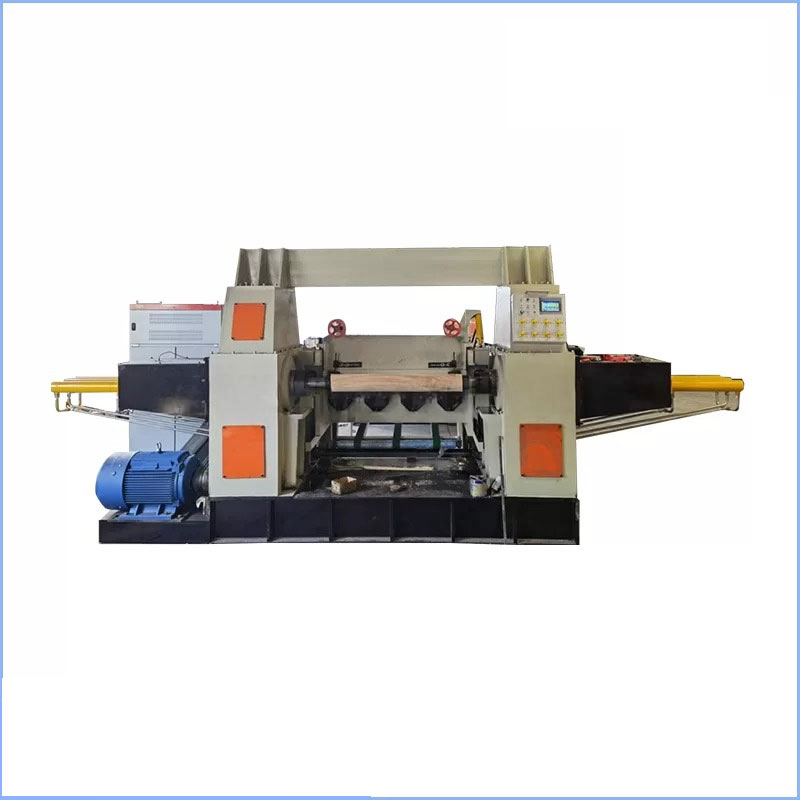

4 Feet Spindle Veneer Peeling Machine
Expected Delivery in 4-10 Days
Rotary peeling machine is one of the main equipment for the production of plywood. The appearance of the rotary peeling machine not only improves the quality and precision of the production veneer, but also greatly improves the production efficiency and the degree of automation of the whole machine.
1. The spindle peeling machine can process the big diameter wood log, the spindles peeling machine can only process the small diameter wood log. You can choose according to the board you want to make, spindle or spindles peeling machine.
2. The horizontal rotary spindles peeling machine is suitable for rotary cutting the remaining wood core by the rotary spindle peeling machine and continuing to rotary cut into veneer. It can also be used for rotary cutting of small diameter wood (diameter 300mm) into veneer. The cam is used to feed the structure, and the cam is made of steel and is carburized for durability.

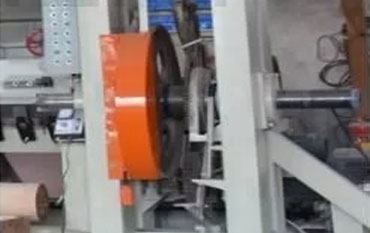

3. Horizontal rotary spindle peeling machine is to put a certain length of wood flat on the machine table. There are clamps on the left and right sides, which can be rotated. The clamps on both sides squeeze the wood and start rotary cutting. , to achieve the purpose of rotary cutting.
4. The spindles peeling machine will be divided to vertical spindle peeling machine, horizontal spindle peeling machine according to the structure difference.
| Model | DB-4FT-VSVP |
|---|---|
| max. Diameter for log | Φ1600 mm |
| peeling length | 1300 mm |
| peeling thickness | 0.5—-3mm |
| machine dimension | 4700*2200*2400mm |
| machine weight | 7000kg |

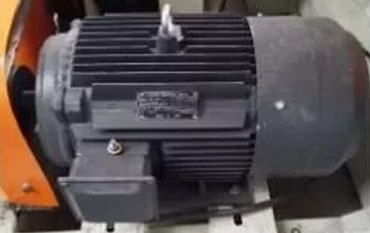

| min motor | 45kw |
| quick go forward & back motor | 7.5kw |
| knife motor | 1.1kw |
| hydraulic motor | 0.75kw |
| pressing roller motor | 1.1kw |
| wood log loader motor | 1.1kw |
Why Choose Us
- lasering your logo on products and designing logo is free.
- Inspect the machine before leaving the factory
- Overseas install and debug the equipment
- Train the first-line operator
- 24 hours online service
- Provide the VIDEO with install and debug the equipment
- Provide technical exchanging
- No else charge
- MOQ≥1
- Support: Wechat /Email/ whatsapp/
- Provide Packaging customization service
- We specialize in this field for 25 years
- Excellent after-sale system
- Supporting visits to factory
FAQ
- Q1: Can you customize products for clients?
- Q2: What about your products quality?
- Q3:How can we trust your factory?
- Q4:Why does the price often change?
- Q5:What about the contract signing?
- Q6:How about delivery?
Ans.: Yes, we can customize and produce woodworking machinery according to customers’ requirements or drawings.
Ans.: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample.
Ans.: We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
Ans.: The price depends on the latest prices of the raw materials.
Ans.: If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we’ll produce the machines as soon as possible.
Ans.: When the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.
