This is 4 feet automatic plywood veneer production line.This is our factory customized for Tanzania customers, can also be used in other countries. All our plywood machines can be customized according to your production requirements.
Plywood Veneer Production Line

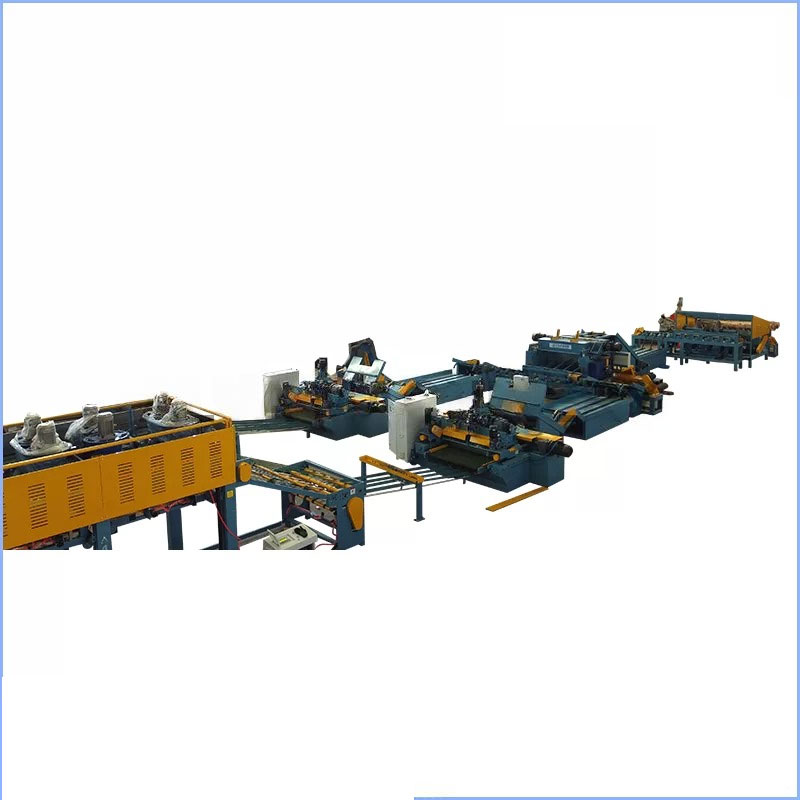

Automatic 4 Feet Plywood Veneer Production Line for Veneer Making
Plywood Machine : Plywood Veneer Production Line
Expected Delivery in 4-10 Days
Production Process ：Log storage table → Log cutting saw → Log transmission machine →Log feeding machine → Log debarker → Bark transmission →Log transmission machine → Automatic log feeding machine → High speed veneer peeling machine ( plywood veneer peeling machine )→ Wood core transmission → Automatic vacuum adsorption veneer stacker machine
Production Process ：Log storage table → Log cutting saw → Log transmission machine →Log feeding machine → log debarker machine (with bark transmission function) →Log transmission machine → Automatic log Loading for peeling machine → Wood core transmission → High speed veneer peeling machine ( plywood veneer peeling machine ) → Automatic vacuum adsorption veneer stacker machine
1.Log storage table
| plywood machine : Log storage table
Log storage before processing，Used in automatic production line to improve production efficiency |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Motor Power | KW | 4 |
| Reducer | 250 | |
| Machine Size | MM | 4800* 1500*830 |
2. Log Cutting Saw
| plywood machine : log cutting saw
The cross-section of the logs is smooth, the size is standard, and the power is strong. high working efficiency. Can cut 2.6 or 2.7 m into 1.3m. |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Total Power | KW | 17.6 |
| Reducer | 80 | |
| Max. Log Length | MM | 2700 |
| The maximum diameter of cut logs | MM | 700 |
| Production capacity | Available for two venner peeling machines | |
| Machine Size | MM | 3500* 3500*2000 |
3.Log transmission
| plywood machine : log transmission
Production line, used for log transmission, used in front of the log feeding machine |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Power configuration | KW | 13.7 |
| Max. Log Length | MM | 2800 |
| Max. diameter | MM | 700 |
| Machine Size | MM | (L)3100*(W)2900*(H)1600 |
4.Log feeding machine for debarker
| plywood machine: log feeding machine for debarker
This log feeding machine is used in front of the log debarker machine. |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Total Power | KW | 4 |
| Reducer | 250 | |
| Sizer | MM | 6000*800*1700mm |
5.log debarker machine with bark transmission function
| plywood machine : log debarker machine
This log debarker has crushing fuction.The crushed barks can be used as the raw material of other wood based panels. log debarker machine with bark transmission function Max. Log Length: 1500 mm Max. Log Diameter : 500 mm |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 11 |
| Power of Double Roller Motor | KW | 11 |
| Power of Crusher Motor | KW | 15 |
| Power of Bark conveyor Motor | KW | 1.5 |
| Total Power | KW | 38.5 |
| Single Roller Reducer | 350 | |
| Double Roller Reducer | 350 | |
| Diameter of Single Roller Motor | MM | 150 |
| Diameter of Double Roller Motor | MM | 150 |
| Size of Peeling Knife | MM | (L) 1500*(W) 140*(T) 12.7 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 500 |
| Minimum Log Diameter | MM | 70 |
| Machine Size | MM | (L)3200*(W)1900*(H) 1900 |
| Machine Weight | KG | 4000 |
6.8M Log transmission
| Plywood machine : 8M Log transmission
Used to transfer logs before automatic log feeding machine |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Total Power | KW | 2.2*3 |
| Maximum log diameter of conveying | MM | 500 |
| Linear speed of host machine | M/MIN | 15 |
| Model of Reducer | MM | Worm gear reducer |
7. Automatic log Loading for peeling machine
| plywood machine : Automatic log Loading for peeling machine
This machine is used for the log conveying before veneer peeling machine. |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Total Power | KW | 2.2*3 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 500 |
| Machine Sizer | MM | 7000*1500*1500mm |
| Machine Weight | KG | 1500 |
8. High speed veneer peeling machine
| plywood machine : veneer peeling machine
This machine is used for the high speed rotary cutting of various hardness logs,the peeled veneers are with high flatness and evenness.This machine is the main model of exporting. |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 7.5(servo motor) |
| Power of Clipper Motor | KW | 2.2 |
| Power of Rubber Roller Motor | KW | 1.5 |
| Total Power | KW | 41.2 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV80 | |
| Rubber Roller Reducer | RV80 | |
| Peeling Knife Size | MM | (L)1500*(W)180*(T)16 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 500 |
| Min. Last Core Diameter | MM | 25/26 |
| Veneer Output Speed | M/MIN | 40-100 (Adjustable speed) |
| Veneer Thickness | MM | 0.3-4.0 |
| Machine Size | MM | (L)4700*(W)2100*(H) 1700 |
| Machine Weight | KG | 6500 |
9. Wood core transmission
| plywood machine : wood core transmission
This machine is used to transfer the peeled wood core.
1.This machine reasonable structure, easy operation and maintenance 2.This machine equipment performance is stable, less wearing parts, long life 3.This machine save about one people |
10. Automatic vacuum adsorption veneer stacker machine
| plywood machine : veneer stacker
High degree of automation and full computer control. high working efficiency |
| Configure | ||
| NAME | UNIT | PARAMETER |
| Installed power | KW | 14 |
| Fan specification | KW | 3 |
| Number of fans | 2(Frequency speed adjustment) | |
| Stacking velocity | M/MIN | 0-100 |
| Stacking height | MM | 0-1200 |
| stacking veneer length | MM | 960-1270 |
| Stacking veneer width | MM | 500-900 |
| Stacking veneer thickness | MM | 0.5-3.6 |
| Stack Quantity | 2according to the requirement | |
| Rating of veneer | 3 | |
| Machine Size | (L)7000*(W)2800*(H) 2600 | |
| Machine Weight | KG | 3200 |
