Veneer Peeling Machine

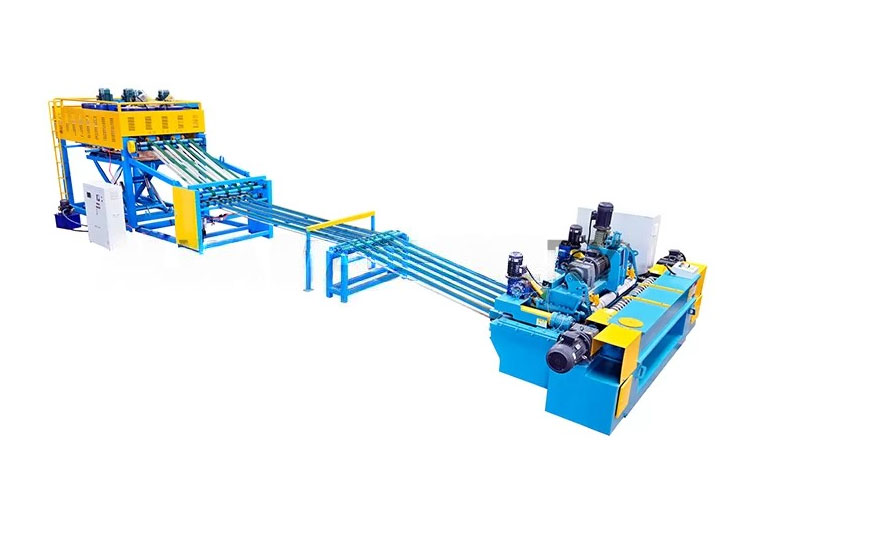

6-8 Feet Veneer Peeling Machine

Main features

Veneer peeling machine without wood clip has rollers at both front and rear side, with the force from motors, the wood inside will be peeled layer by layer. It’s a high efficiency and high precision wood peeling equipment.


Feeder roller steps forward according to the calculated curve, make sure even veneer thickness High accuracy of wood radius calculation..


Hot Tags: wood veneer peeling, China, suppliers, manufacturers, factory, customized, wholesale, quotation, for sale, AUTO Saw Machine For Plywood, Peeling, Plywood Production Line,Veneer Peeling Line,4 feet,Log Debarker Machinery,plywood veneer peeling


Expected Delivery in 4-10 Days
  • Product brief introduction
  • Product superiority
  • Product parameter list

The 8 ft CNC veneer peeling machine is used to process wood segments of a certain length and diameter into continuous veneer strips for the production of plywood, fine wood upper boards and other wood-based panel veneers. The main technical parameters of the rotary cutting machine are that it can be processed Maximum length and diameter of wood segments.


8 ft high-performance veneer peeling machine is used for peel the wood into face veneers. Face veneers can be laminated on the core veneers, to make the plywood better. Spindle-less plywood veneer peeling machine is most welcomed among plywood machinery.Heavy duty veneer peeling machine has high configuration, to guarantee the veneer quality. This model is suitable for hard wood, such as Eucalyptus,etc.


8 ft veneer peeling machine is fully automatic at high speed,You can set the speed to 40M/Min,50M/Min,60M/Min,70M/Min,80M/Min.many customers choose automatic veneer peeling machine to do high-speed automatic one support two veneer peeling production line,because it has the advantages of being dural power CNC,computer adjustment knife seam hydraulic pressure install knife,push back CNC.


CNC single spindle and without spindle combined peeling machine not only improves the quality and precision of the production of veneer, but also greatly improves the production efficiency and the degree of automation of the whole machine. The 4 feet veneer peeling machine is one of the main equipment for the production of plywood.


Rotary cutting machine is divided into clamping rotary cutting machine and no clamping rotary cutting machine,one of them is the clipping machine included CNC spindle and vertical spindle,each of these rotary cutting machines has its own advantages. If you want to know more about it, you can contact us.


  • The rotary cutting board is combined into one, which improves the utilization rate of the site and labor. It adopts advanced high-strength wear-resistant screw and screw drive and multi-functional numerical control box, which is easy to operate and automatically cut skin, low maintenance rate, labor saving and material saving. And make the precision of the veneer finger quality stable and reliable. Suitable for miscellaneous wood, eucalyptus, maple, pine, etc.

  • The guide rail part make by high temperature quenching and CNC cutting method,increases the hardness and ensure guide rail has unlimited service life,
    Avoid the wear problem like ordinary screw, and ensure machine operation no deviation, veneer width and thickness are accurate,produce high quality veneer.

  • All peeling rollers have been quenched and electroplating,increases the peeling roller hardness and sevice life.

  • The roller pattern have different type.We will choose the right roller pattern acoording to clients differen wood species.

  • Our electric is international famous brand Siemens.

Model DB-VP-8FT
Max peeling length 2600mm
Max cutting diameter 600mm
Thickness range 0.3mm-1.2mm/1.2-3.6
Peeling knife 2900*180*16mm
Cutting knife 2800*140*12.7mm
Core diameter of remaining 32-40mm
Diameter of guide screw 125mm/2700mm
Single roller motor 90mm
Double roller motor &Power of Single roller 2*11kw+2*11kw
Feeding motor 11kw servo motor
Cutting motor 4kw servo motor
Conveyor motor 4kw
Total power 48.7kw
Voltage 380V /440V/415V / customized
Linear speed of host machine 40-120M/miute(adjustable)
Weight 10000kgs
Overall dimension 6000*2000*1600mm

Explore our Produts

Product picture
Awesome Image

Product Display

Use Display

Awesome Image

Real work

Awesome Image

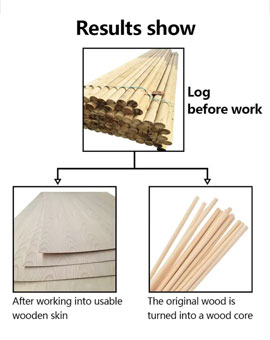

Result

Awesome Image

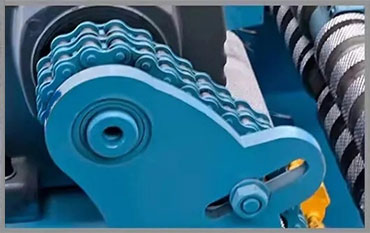

1. Hydraulic Knife Holder

Hydraulic Knife Holder saving manpower, simple operation and automation.

>
Awesome Image

2. Fammous Brand Parts

Taiwan Hiwin linear guide railo ensure the vener more smooth and uniform.

Awesome Image

3. Double Roller Drive

Double roller frive ensure good stability and high uniformity peeler.

Awesome Image

Why Choose Us

  • lasering your logo on products and designing logo is free.
  • Inspect the machine before leaving the factory
  • Overseas install and debug the equipment
  • Train the first-line operator
  • 24 hours online service
  • Provide the VIDEO with install and debug the equipment
  • Provide technical exchanging
  • No else charge
  • MOQ≥1
  • Support: Wechat /Email/ whatsapp/
  • Provide Packaging customization service
  • We specialize in this field for 25 years
  • Excellent after-sale system
  • Supporting visits to factory

FAQ

  • Q1: Can you customize products for clients?
  • Ans.: Yes, we can customize and produce woodworking machinery according to customers’ requirements or drawings.

  • Q2: What about your products quality?
  • Ans.: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample.

  • Q3:How can we trust your factory?
  • Ans.: We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

  • Q4:Why does the price often change?
  • Ans.: The price depends on the latest prices of the raw materials.

  • Q5:What about the contract signing?
  • Ans.: If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we’ll produce the machines as soon as possible.

  • Q6:How about delivery?
  • Ans.: When the product is ready, it can be delivered to you after your full payment. Will provide technical guidance.
